AG-POST STRAIN-IT.
WHY ARE STRAINER ASSEMBLIES IMPORTANT?
Strainer Assemblies are the most important structure in any fence and more often than not, the success of your strainer assembly will make or break your fence. Taking the time to erect strainer assemblies correctly is crucial to ensure the durability and longevity to your fence.
​
WHERE ARE STRAINER ASSEMBLIES REQUIRED?
The need for a strainer assembly is required to start and end your fence. Where there is a change of direction and/or topography in your fence, or a structure to support a gateway, strainer assemblies are also needed.
STRAIN-IT POSTS
The top three factors that contribute to a failed fence are; structural failure, post pull-out & soil movement. Therefore, strainer posts need to be built deep into the ground.
​
The deeper the strainer post, the better your fence. Due to the increased vertical & horizontal force put on strainer posts, the depth of your strainer post is one of the most important factors in ensuring that your strainer assembly will last over an extended period of time.
AG-POST STRAIN-IT POSTS
100Nb / 114mm O.D. | Minimum 3.0mm Wall Thickness
PRODUCT CODE | DESCRIPTION | WEIGHT | QTY / PACK |
|---|---|---|---|
861080 | AG-POST STRAIN-IT POST BLACK 100Nb X 2.1M | 18.4 kg | 19 |
861085 | AG-POST STRAIN-IT POST BLACK 100Nb X 2.5M | 21.9 kg | 19 |
861060 | AG-POST STRAIN-IT POST GALV 100Nb X 2.1M | 18.4 kg | 19 |
861065 | AG-POST STRAIN-IT POST GALV 100Nb X 2.5M | 21.9 kg | 19 |
AG-POST STRAIN-IT SLOTTED POSTS
80Nb / 89MM O.D. | Minimum 3.0mm Wall Thickness | Slots & Holes to suit StayKits
PRODUCT CODE | DESCRIPTION | WEIGHT | QTY / PACK |
|---|---|---|---|
861020 | AG-POST STRAIN-IT SLOTTED POST HD GALV 80Nb X 2.1M | 14.2 kg | 19 |
861025 | AG-POST STRAIN-IT SLOTTED POST HD GALV 80Nb X 2.5M | 16.9 kg | 19 |
100Nb / 114mm O.D. | Minimum 4.0mm Wall Thickness | Slots & Holes to suit StayKits
PRODUCT CODE | DESCRIPTION | WEIGHT | QTY / PACK |
|---|---|---|---|
861040 | AGPOST STRAIN-IT SLOTTED POST HD GALV 100Nb X 2.1M | 23.0 kg | 19 |
861045 | AGPOST STRAIN-IT SLOTTED POST HD GALV 100Nb X 2.5M | 27.4 kg | 19 |
861050 | AGPOST STRAIN-IT SLOTTED POST HD GALV 100Nb X 3.25M | 35.6 kg | 19 |

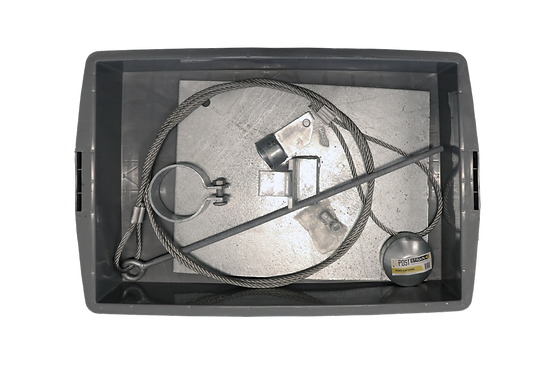

AG-POST STRAIN-IT STAYKIT 80/40 WIRE ROPE (GREY)
to suit 80Nb Post / 40Nb Stay
The Ag-Post Strain-IT 80/40 Wire Rope StayKit includes:​
-
1x Length of 8mm Stainless Steel Wire Rope to 3.8M
-
1x Hot Dip Galvanised Steel Ground Plate
-
1x StayCap to suit 40Nb Stays
-
1x Bolt on Bracket to suit 80Nb Strainer Posts
-
1x 80Nb Post Cap
-
1x Grey Heavy Duty Custom Plastic Crate

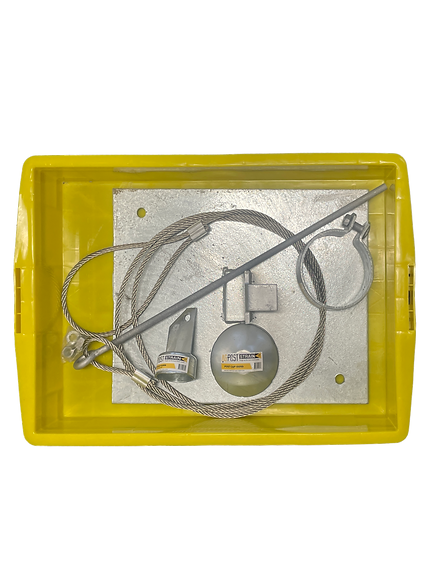

AG-POST STRAIN-IT STAYKIT 100/50 WIRE ROPE (YELLOW)
to suit 100Nb Post / 50Nb Stay
The Ag-Post Strain-IT 100/50 Wire Rope StayKit includes:​
-
1x Length of 8mm Stainless Steel Wire Rope to 3.8M
-
1x Hot Dip Galvanised Steel Ground Plate
-
1x StayCap to suit 50Nb Stays
-
1x Bolt on Bracket to suit 100Nb Strainer Posts
-
1x 100Nb Post Cap
-
1x Yellow Heavy Duty Custom Plastic Crate
AG-POST STRAIN-IT STAYKIT 100/50 THREADED ROD (BLACK)
to suit 100Nb Post / 50Nb Stay
The Ag-Post Strain-IT 100/50 Threaded Rod StayKit includes:​
-
3x 1300mm Lengths of 12mm HDG Threaded Rod, plus 2x Coupling Nuts to join the rod, plus 4x nuts & washers
-
1x Hot Dip Galvanised Steel Ground Plate
-
1x StayCap to suit 50Nb Stays
-
1x Bolt on Bracket to suit 100Nb Strainer Posts
-
1x 100Nb Post Cap
-
1x Black Heavy Duty Custom Plastic Crate & Plastic Tube
PRODUCT CODE | DESCRIPTION | WEIGHT | QTY / PACK |
|---|---|---|---|
860035 | AGPOST STRAIN-IT STAYKIT - 80/40 WIRE ROPE (GREY TUB) | 8.4 kg | 32 |
860030 | AGPOST STRAIN-IT STAYKIT - 100/50 WIRE ROPE (YELLOW TUB) | 8.4 kg | 32 |
860040 | AGPOST STRAIN-IT STAYKIT - 100/50 THREADED ROD (BLACK TUB & TUBE) | 9.0 kg | 32 |
STAYKITS
STAYS
HEIGHT OF STAYS - A stay of good height should be TWO THIRDS of the height of your post from level ground. Your stay should be at an angle of about 30 DEGREES to the ground in order to give your strainer maximum support.
​
If your stay is set too low, it will compromise your strainer post and pull the post out of the ground. However, if your stay is set too high, your stay will pull the post inwards and collapse the assembly.
WHAT LENGTH SHOULD MY STAY BE?
A stay plays an essential part in the holding power of a strainer assembly. The general rule of thumb for stay lengths is that they should be at least two & a half times the height of your fence.
PRODUCT CODE | DESCRIPTION | WEIGHT | QTY / PACK |
|---|---|---|---|
861000 | AG-POST STRAIN-IT STAY 40Nb X 3.25M | 8.5 kg | 19 |
861005 | AG-POST STRAIN-IT STAY 50Nb X 3.25M | 10.7 kg | 19 |
860025 | AG-POST STRAIN-IT STAY POST | 11.0 kg | 19 |
ACCESSORIES
PRODUCT CODE | DESCRIPTION | WEIGHT |
|---|---|---|
860010 | AG-POST STRAIN-IT H-BOX TENSION KIT (TWIN PACK) | 1.5 kg |
860015 | AG-POST STRAIN-IT IMPACT CAP | 1.5 kg |
860099 | AG-POST STRAIN-IT TUBE SOCKET & ADAPTOR | 0.5 kg |
860020 | AG-POST STRAIN-IT FOOTER BRACE | 0.8 kg |
860000 | AG-POST STRAIN-IT STAYCAP 40Nb STAY | 0.3 kg |
860005 | AG-POST STRAIN-IT STAYCAP 50Nb STAY | 0.3 kg |
860085 | AG-POST STRAIN-IT POST BRACKET 80Nb | 0.2 kg |
860090 | AG-POST STRAIN-IT POST BRACKET 100Nb | 0.2 kg |
860092 | AG-POST STRAIN-IT 2 WAY POST BRACKET 100Nb | 0.7 kg |
860093 | AG-POST STRAIN-IT 3 WAY POST BRACKET 100Nb | 0.8 kg |
860075 | AG-POST STRAIN-IT POST CAP 80Nb | 0.2 kg |
860080 | AG-POST STRAIN-IT POST CAP 100Nb | 0.3 kg |
860065 | AG-POST STRAIN-IT ANCHOR SLEEVE 80Nb | 3.4 kg |
860067 | AG-POST STRAIN-IT ANCHOR SLEEVE 100Nb | 3.4 kg |
860070 | AG-POST STRAIN-IT ANCHOR PEGS 900MM (TWIN PACK) | 3.4 kg |
